Miniature SMD Oscillators

Miniature smd TCXO, VCXO and clock oscillators, complementing Laptech manufactured products; qualified through laptech production including performance and shock and vibration testing.



clock oscillators

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE
OV smd clock oscillator;
from ±20ppm(-20 +70)°C,
(5.0 x 3.2 x 1.3)mm,
(1.8 ~ 5.0)Vd.c.
21.6kHz ~ 125MHz Data sheet OV
OX smd clock oscillator;
from ±20ppm(-20 +70)°C,
(3.2 x 2.5 x 1.2)mm,
(1.8 ~ 3.3)Vd.c.
(1 ~ 40)MHz Data sheet OX
OY smd clock oscillator;
from ±20ppm(-20 +70)°C,
(2.5 x 2.0 x 1.0)mm,
(1.8 ~ 3.3)Vd.c.
(1 ~ 40)MHz Data sheet OY
PX pre-programmed smd clock,
from ±20ppm(-10 +60)°C,
(3.2 x 2.5 x 1.2)mm,
(1.8 ~ 3.3)Vd.c.
(1 ~ 200)MHz Data sheet PX
PY pre-programmed smd clock,
from ±20ppm(-10 +60)°C,
(2.5 x 2.0 x 1.0)mm,
(1.8 ~ 3.3)Vd.c.
(1 ~ 200)MHz Data sheet PY



VCXO oscillators

TYPE BASIC SPECIFICATION FREQUENCY DATA IMAGE

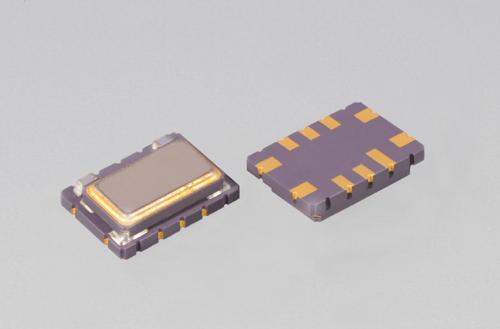

smd TCXO TS3 smd TCXO, stratum 3E compliant;
±4.6ppm(-10 +60)°C,
(7.0 x 5.0 x 2.0)mm,
(3.3 ~ 5.0)Vd.c.
(5 ~ 26)MHz Data sheet smd TCXO TS3
smd TCXO TX smd VCTCXO;
from ±0.5ppm(-20 +70)°C,
(3.2 x 2.5 x 1.0)mm,
(2.5 ~ 3.3)Vd.c.
(15 ~ 40)MHz Data sheet smd TCXO TX
smd TCXO TY smd VCTCXO;
from ±0.5ppm(-20 +70)°C,
(2.5 x 2.0 x 0.9)mm,
(2.5 ~ 2.8)Vd.c.
(15 ~ 40)MHz Data sheet smd TCXO TY
smd VCXO VT smd VCXO;
from ±25ppm(-20 +70)°C,
(7.0 x 5.0 x 1.8)mm,
(3.3 ~ 5.0)Vd.c.
(1.5 ~ 200)MHz Data sheet smd VCXO VT
